Complete Recovery System Kits for Closed Loop Extractors

active reclaim package

The complete recovery system is used to recycle and re-use your solvent in a closed loop extractor essential oil extraction system.
Includes:

Cps-TRS600 Vacuum Recovery Pump
Cps 6cfm Vacuum Purge Pump

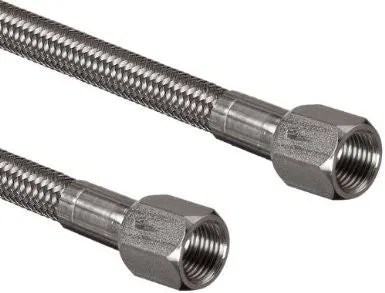

3-60" stainless steel braided hoses
1- 72" stainless steel braided hose

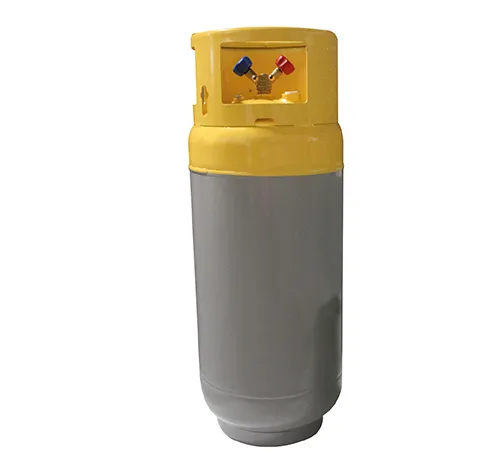

100lb LP Recovery Tank
50' 1/4"flare chilling coil

Active Recovery System

Name: CPS TRS600 Complete Recovery System Kits for Closed Loop Extractors
SKU: 189956

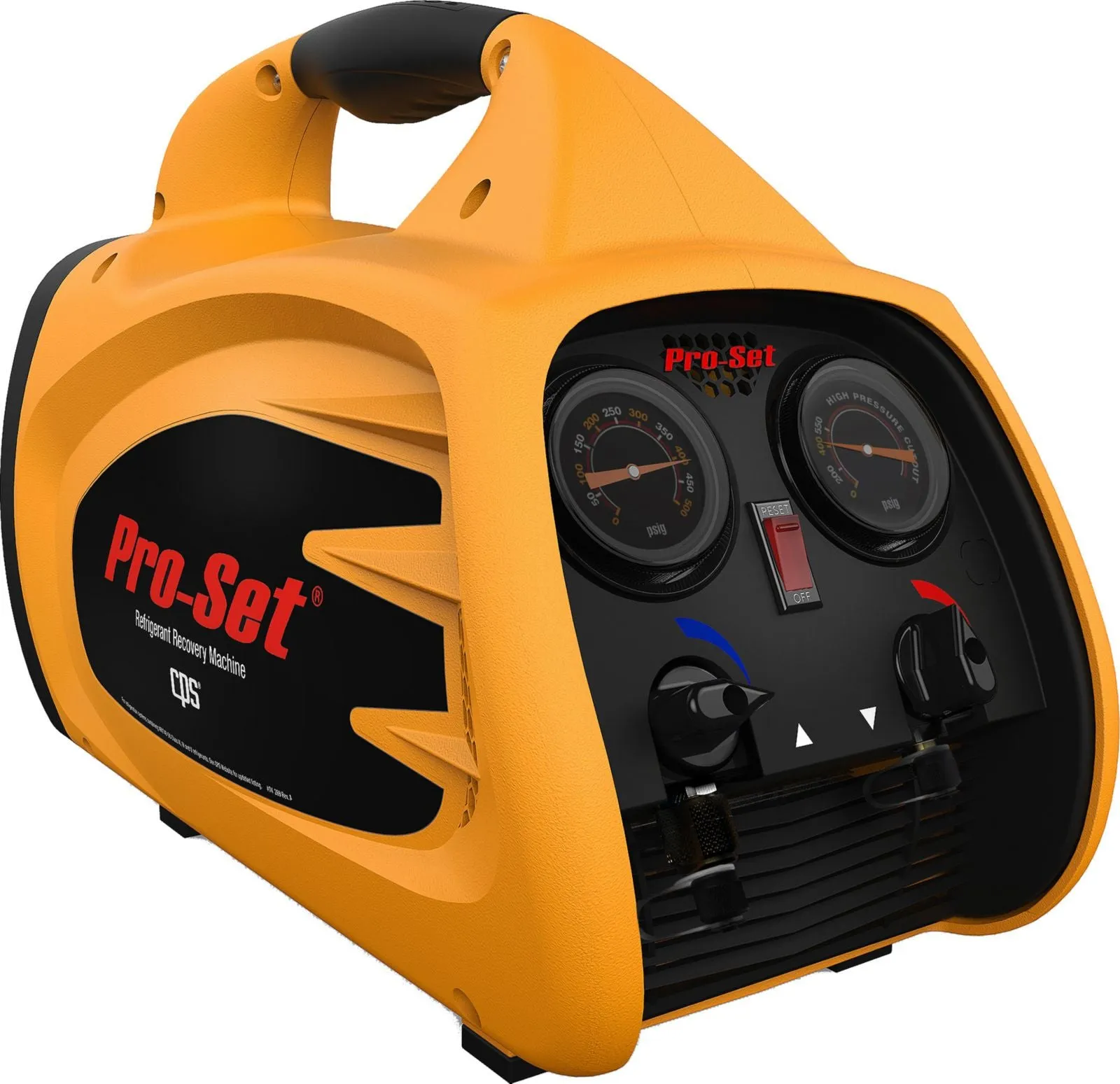

CPS TRS-600

TRS600 CPS (Ignition Proof) 2 Cylinder Commercial Refrigerant Recovery System. Fast, Lightweight, Portable, Oilless recovery of all gasses and Now Approved For R-134A, R-600 & R-601 Refrigerants. Weighing in at only 26 pounds. CPS introduces a new addition to its recovery machine line-up, the Pro-Set TRS600. A lightweight, efficient and reliable refrigerant recovery machine in a compact, rugged, contemporary housing – the TRS600 offers the ideal combination of form and function to make refrigerant recovery fast and easy! The TRS600 adds the speed and convenience of CPS's proven oilless technology plus added condenser cooling in a lightweight package that's sure to speed up any recovery job. A Powerful 2/3 HP oil-less 2 cylinder reciprocating recovery compressor provides speed and and the added condenser adds ample cooling to keep tank temperatures low for fast recovery in high temperature environments. An automatic low pressure shutoff feature turns unit off when recovery is completed. Rugged high density, double walled, contemporary plastic housing with easy view top mounted controls for toughness. R-410a ready with 550 Psi high pressure shut-off switch. No tool access suction housing for easy filter clean/change. The unit also features a Cleanable 100 - mesh screen integrated into Suction Port to keep particulates from damaging the unit. Optional tank overfill sensor cord kit can be added for safety when not using a scale. A 550 PSIG High Pressure cutout switch with LED indicator provide easy view when things get hot.

Product Features

Maintenance free oil-less compressor design
Powerful 2/3 HP oil-less 2 cylinder reciprocating recovery compressor
Exceptional compressor, condensing and cooling systems allow fast recovery in high temperature environments
Automatic low pressure shutoff feature turns unit off when recovery is completed
Rugged high density, double walled, contemporary plastic housing with easy view top mounted controls
R-1234yf Approved
R-1234ze Approved
R-600 & R-601 Approved
R-410a ready with 550 Psi high pressure shut-off switch
Ergonomic well balanced design for easy transport - weighs 26 lbs (11.8 kg)
No tool access suction housing for easy filter clean/change
Worldwide patents pending
Durable inlet and outlet ball valve construction with gauges
Integrated component moorings for quiet operation
Less parts provides greater reliability

. The Fastest recovery pump at this great price!

Model Number	TRS600
Compressor Type	2 Cylinder Oil-less Reciprocating Compressor
Dimensions	9.75" Wide x 21" Long x 14" High
Weight	26.0 lbs
Operating Temperature	32°F (0°C) to 120°F (49°C)
Power Source	115 V 50 / 60 Hz
Power Consumption	1000 W
Filtration	Cleanable 100-mesh screen integrated into Suction Port
Overload Protection	Motor Thermally Protected
High Pressure Shut-Off	550 psig Auto Reset
Refrigerants	R-12, R-134a, R-1234yf, R-1234ze, R-22, R-290, R-32, R-401A, R-401B, R-401C, R-402A, R-402B, R-404A, R-406A, R-407A, R-407B, R-407C, R-407D, R-407E, R-407F, R408A, R-409A, R-410A, R-410B, R-411A, R-411B, R-412A, R-500, R-502, R-507A, R-509A, R-600, R-601
Flow Rate @ 60Hz, reduce 15% for 50Hz
Direct Vapor	Up to 2.1 lb / min (Up to 57 kg / hr)
Direct Liquid	Up to 11 lb / min (Up to 293 kg / hr)
Push-Pull Liquid	Up to 36 lb / min (Up to 830 kg / hr)
